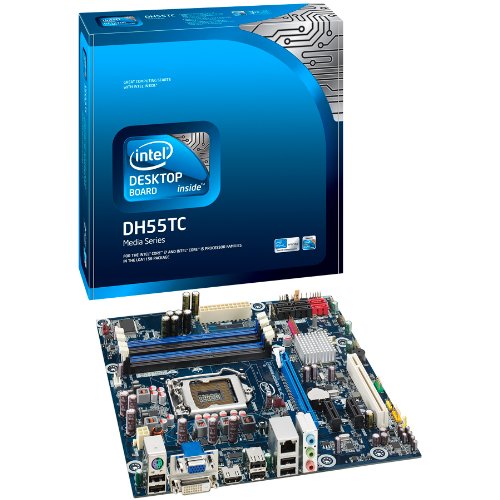

Intel Socket 1156/Intel H55/MATX Motherboard, Retail BOXDH55TC

You looking to find the "Intel Socket 1156/Intel H55/MATX Motherboard, Retail BOXDH55TC" Good news! You can purchase Intel Socket 1156/Intel H55/MATX Motherboard, Retail BOXDH55TC with secure price and compare to view update price on this product. And deals on this product is available only for limited time.

Price: $139.00

Product Feature

• CPU: Socket 1156 Support Intel Core i7/i5/i3/Pentium Processor; Support Intel Turbo Boost and Hyper-Threading Technology Chipset: Intel H55 Express Chipset
• Memory: 4x 240pin DDR3-1333/1066 DIMMs, Dual Channel, Capacity Upto 16GB Slots: 1x PCI-Express 2.0 x16 Slots; 2x PCI-Express x1 Slot; 1x PCI Slot
• SATA: 6x SATA2 Ports Audio: Realtek ALC888S 8 Channel High Definition Audio CODEC
• LAN: Intel 82578DC Gigabit Ethernet Controller
• Ports: 12x USB 2.0 Ports (6 rear, 6 on board); 1x PS/2 Port; 1x VGA Port; 1x DVI Port; 1x HDMI Port; 1x RJ45 LAN Port; Audio I/O JacksRoHS Compliant

Product Description

Intel BOXDH55TC Socket 1156/Intel H55/A&GbE/MATX Motherboard, Retail

Intel Socket 1156/Intel H55/MATX Motherboard, Retail BOXDH55TC Review

I bought this motherboard for a mid-grade media pc I was building. I needed a micro-ATX board for the Lian Li PC-C37 media case. (BTW a very nice case, very sleek). 4 gigs of ram and the i3core-540 processor, this thing has more than enough resources to run a media pc. Usually I prefer separate video and audio cards but because I was ballon-on-a-budget, I wanted the video and audio cards to be integrated. If you don't intend to use it for gaming or other high end visual applications this will work nicely. The media software XBMC runs very smooth, videos look great. Installation instruction is basically a large diagram with pretty basic explanations. Most people who buy motherboards should be fairly technically inclined and thus don't need to have their hands held. Pretty much the exact opposite of all those completely unnecessary install disks for wireless cards and routers. It does come with a nice motherboard driver CD which worked great if you are running windows. I hadn't tried Linux yet so I can't offer any insight on the driver support there. Ubuntu usually has pretty good driver support. Lots of USB ports, and even an old school PS2 if you happen to still be using some old school peripherals. Nice integrated gigabit LAN port works well for transferring large media files.

An interesting note. Space is a bit tight in some areas on the board. If you decide to add a PCI-Express card the back of the card will come very close to the DIMM slots. You have to have the securing brackets for your memory in the upright and locked position in order to fit your PCI-Express card. So Install your RAM first in the slots nearest the CPU. Also no direct firewire ports on the motherboard. You will have to purchase a card to convert to firewire. Not a huge deal but something that left me scratching my head when I went to plug in my firewire front port.

Overall a great board for my build. If you are looking to build a nice mid-grade machine (Especially for a HTPC) with limited space in your case, this motherboard will work nicely for a foundation.

Most of the consumer Reviews tell that the "Intel Socket 1156/Intel H55/MATX Motherboard, Retail BOXDH55TC" are high quality item. You can read each testimony from consumers to find out cons and pros from Intel Socket 1156/Intel H55/MATX Motherboard, Retail BOXDH55TC ...
